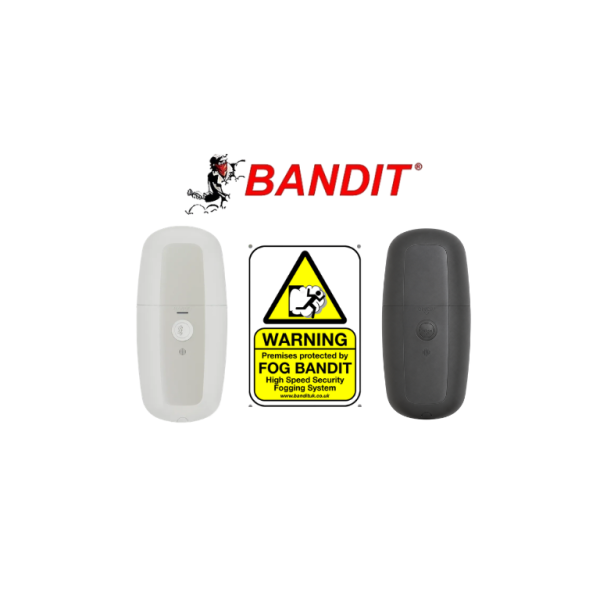

Fog Bandit 320 Security Fog System – Up to 200 m³
High-Speed Active Security Fog Protection
The Fog Bandit 320 Security Fog System is a compact, high-performance active security solution designed to rapidly reduce visibility during an intrusion, helping restrict an intruder’s ability to locate or remove valuable assets.
Using its Multi-Way Ejection Nozzle, the Bandit 320 can deliver up to approximately 200 m³ of high-density security fog in just 4 seconds, with fog output of up to approximately 50 m³ per second.
The system is suitable for small to medium commercial and high-value areas, with final cartridge configuration, mounting position and protected volume confirmed during professional site assessment and commissioning.
Professional Alarm Integration
The Fog Bandit 320 can be integrated with compatible professional security alarm systems or configured for standalone operation.
The system uses a dedicated CF31v2 Controller supplied in a separate 12V enclosure with backup battery. This modular architecture allows the fog generator to be positioned independently from the control electronics, providing greater flexibility for installation, monitoring and maintenance.
Depending on the final system design, the controller can interface with alarm, guard, confirmation, authorised panic activation, fire inhibit and system status functions.
Flexible Installation Options

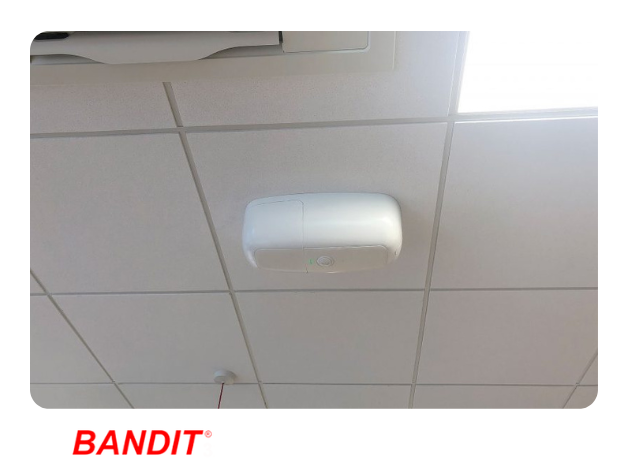

The Fog Bandit 320 supports vertical, horizontal, ceiling and hidden installation options, allowing the generator and fog trajectory to be positioned according to the protected area while maintaining a clean and discreet appearance.

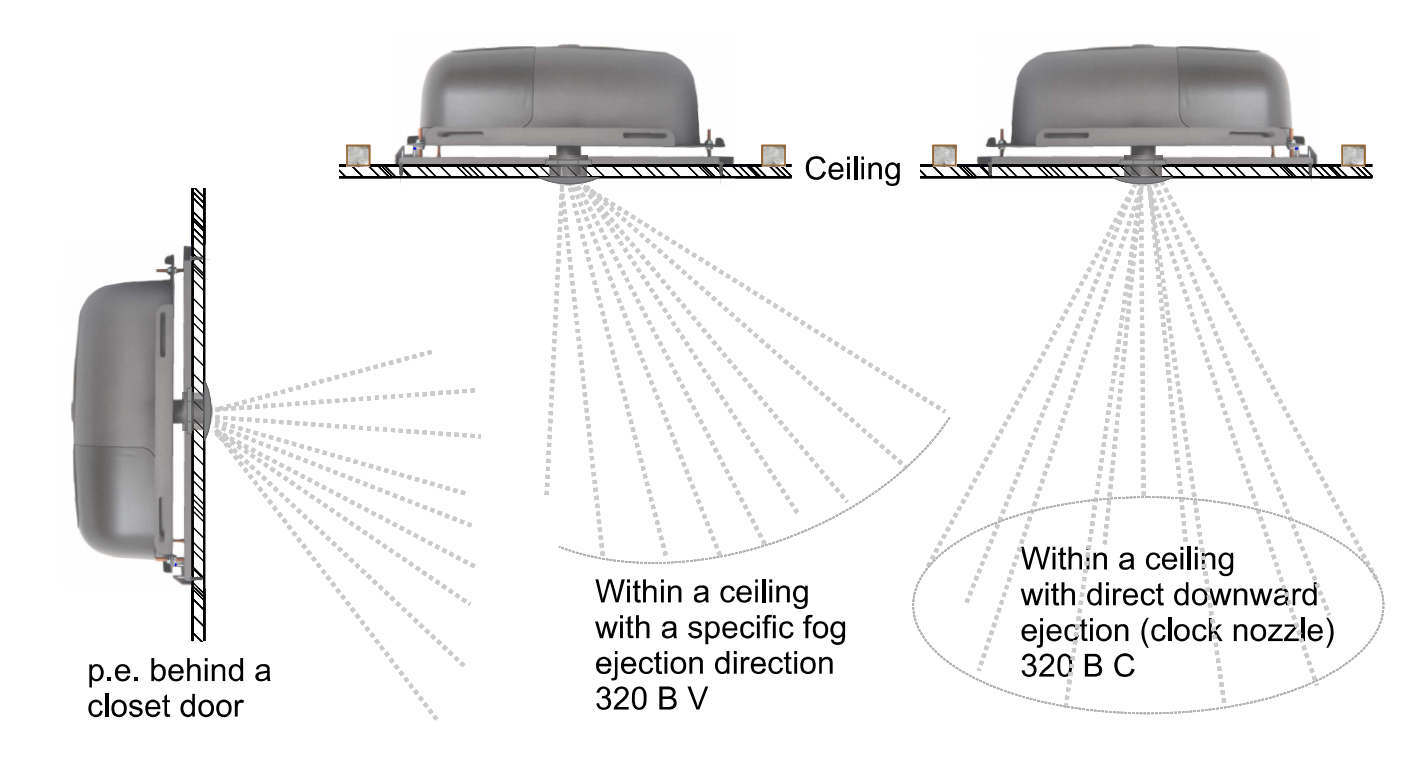

The Bandit 320 can also be configured for covert installation above suspended ceilings, behind suitable partition or plaster walls, or inside cabinets. In these installations, the fog generator can remain concealed while only the fog ejection nozzle is visible within the protected area.
This makes the system particularly suitable for jewellery stores, retail premises, pharmacies, electronics retailers and other commercial environments where visible security equipment may not suit the interior design.
Fog Bandit 320 in Action
See how the Fog Bandit 320 Security Fog System rapidly deploys high-density security fog to reduce visibility within seconds during an intrusion event.
High-Density Security Fog
Fog Bandit security fog is designed to rapidly restrict visibility within the protected area, reducing an intruder’s ability to identify, locate or remove valuable merchandise and equipment.
The system is designed for use in commercial and high-value environments and is intended not to leave damaging deposits or stains on floors, furniture, electronics, stock or other protected assets under normal operating conditions.
Dual-Cartridge System – Two Separate Activations
The Fog Bandit 320 uses two sealed disposable fog cartridges, installed in separate cartridge positions within the generator.
With two full operational cartridges installed, the system is prepared for two separate full fog activations before both used cartridges require replacement.
This dual-cartridge design provides a second available fog activation after the first cartridge has been discharged, helping maintain protection until the used cartridges are replaced.
Fog Cartridge Configuration
The Fog Bandit 320 cartridge configuration is selected according to the protected volume and final system design.
- 180–200 m³ Cartridge 8 – disposable operational cartridge for the Bandit 320
- 40–60 m³ Test Cartridge – listed by Fog Bandit ANZ as a test cartridge for commissioning and demonstration purposes
Operational cartridges can be supplied separately when replacement is required. Final cartridge selection is confirmed according to the protected area, room geometry and installation requirements.
Fast 0.1-Second Response
The Fog Bandit 320 has a stated 0.1-second device reaction time, allowing the system to respond extremely quickly once the programmed activation conditions are met.
Combined with fog output of up to approximately 50 m³ per second, the Bandit 320 is designed to rapidly transform visibility inside the protected area.
Key Features
- Compact high-performance security fog system
- Up to approximately 200 m³ protection in 4 seconds
- Fog output up to approximately 50 m³ per second
- 0.1-second device reaction time
- Multi-Way Ejection Nozzle
- Two separate full fog activations
- Dual sealed disposable cartridge system
- 180–200 m³ Cartridge 8 operational configuration
- External CF31v2 Controller
- Dedicated 12V controller enclosure
- Backup battery
- Compatible with professional security alarm systems
- Standalone operation available
- Optional authorised panic activation
- Fire inhibit integration capability
- System monitoring and diagnostic functions
- Vertical, horizontal, ceiling and hidden mounting options
- Covert installation options available
- 5-year manufacturer warranty
- 30+ year manufacturer-stated device lifespan
- Made in Belgium
- Professional installation and commissioning required
Suitable Applications
- Jewellery stores
- Retail stores
- Pharmacies
- Tobacconists
- Convenience stores
- Service stations
- Commercial premises
- Reception areas
- Electronics retailers
- High-value storage areas
- Premium retail environments
- Small to medium protected commercial areas
What Is Included
- Fog Bandit 320 fog generator
- CF31v2 Controller
- Dedicated 12V controller enclosure
- Backup battery
- Test fog cartridge as supplied by Fog Bandit ANZ
- Warning signs
Operational 180–200 m³ cartridges, mounting hardware and optional accessories are selected according to the protected area and final installation requirements.
Optional System Integration
The Fog Bandit 320 can form part of a complete active security solution incorporating:
- Professional intrusion alarm system
- 24/7 back-to-base monitoring
- Audible alarm deterrence
- Authorised panic activation
- CCTV and video verification
- Arm / disarm status indication
- Remote control options
Warranty and Long-Term Durability
Fog Bandit systems are supplied with a 5-year manufacturer warranty.
The manufacturer also states a device lifespan of 30+ years, making the Fog Bandit 320 a long-term active security investment when correctly installed, maintained and serviced.
Fog Bandit systems are Made in Belgium.
Professional installations completed by Amaro Electronics are backed by a 6-year Amaro Electronics workmanship warranty, subject to applicable terms and conditions.
Professional Installation
Every Fog Bandit installation requires assessment of the protected volume, ceiling height, room layout, entry points, valuable asset locations and required fog trajectory.
Professional installation includes system positioning, alarm integration, controller configuration, cartridge selection, commissioning and operational testing.
Important Information
The Fog Bandit 320 is capable of protecting up to approximately 200 m³ depending on cartridge configuration, installation method, room geometry and site conditions.
With two full operational cartridges installed, the system provides two separate fog activations before cartridge replacement is required.
Final cartridge selection, mounting position, activation logic, alarm integration and fog trajectory are confirmed during professional site assessment and commissioning.
Fog Bandit systems must be professionally installed and commissioned by qualified trade installers.
