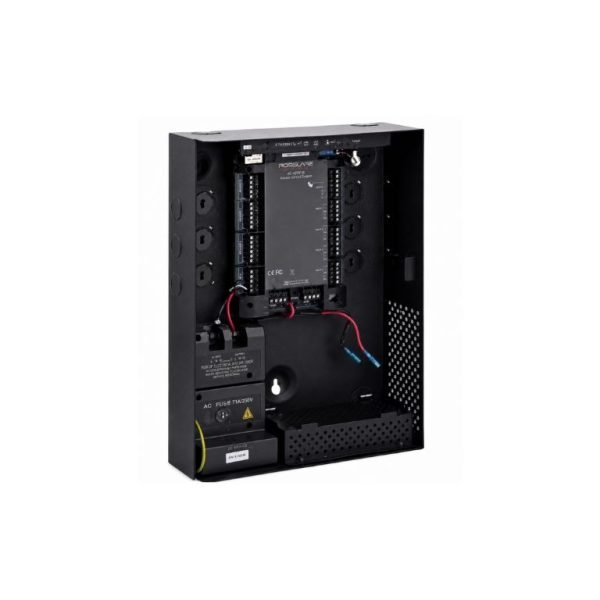

The Rosslare AC-425IP 4 Door Controller is a professional enterprise-grade networked access control panel designed for commercial buildings, strata complexes, offices, childcare centres and industrial security applications.
Powered by Rosslare AxTraxNG™ server software, the AC-425IP delivers intelligent online and offline access control through TCP/IP networking, with support for up to 30,000 users, advanced automation logic, anti-passback, interlocking, scheduling and expandable reader architecture.
The controller supports four readers as standard and can be expanded to support up to eight readers using compatible Rosslare expansion modules.
Designed for reliable long-term commercial operation, the system can integrate with electric strikes, magnetic locks, automatic doors, sliding doors and other professional access control equipment.
Key Features
4 Door Networked Access Control
Supports four readers as standard, with expandable architecture for larger installations.
TCP/IP Network Connectivity
Integrated 10/100 Ethernet connectivity for centralised networked access control management.
Expandable Architecture
Expandable to support up to eight readers per controller using compatible Rosslare expansion modules.
Enterprise User Capacity
- Up to 30,000 users
- Up to 30,000 PIN codes
- Up to 20,000 stored offline events
Advanced Automation Logic
- Interlocking
- Anti-passback
- First-person delay
- Automatic relocking
- Scheduled outputs
- Programmable automation links
Online and Offline Operation
Continues operating during network interruptions using onboard non-volatile memory.
Professional Commercial Integration
- Electric strikes
- Magnetic locks
- Automatic doors
- Sliding doors
- Commercial access control systems
Wiegand Reader Compatibility
Supports multiple Wiegand reader formats from 26-bit to 64-bit.
AxTraxNG™ Software Integration
Designed for integration with Rosslare AxTraxNG™ enterprise access control software.
Technical Specifications
| Model | Rosslare AC-425IP-B |
|---|---|
| Controller Type | 4 Door IP Networked Access Controller |
| Networking | TCP/IP Ethernet 10/100 |
| Expansion Support | MD-D04B / MD-IO84B |
| Reader Capacity | 4 readers, expandable to 8 readers |
| User Capacity | Up to 30,000 users |
| PIN Capacity | Up to 30,000 PIN codes |
| Event Log | Up to 20,000 offline events |
| Inputs | 4 supervised inputs |
| Outputs | 4 programmable relay outputs |
| Reader Interface | Wiegand 26–64 bit |
| Power Supply | 12V DC |
| Relay Rating | 5A @ 30V DC |
| Operating Temperature | 0°C to 49°C |
| Installation Type | Indoor installation |
| Enclosure | Lockable metal cabinet |
Ideal Applications
- Commercial buildings
- Strata complexes
- Childcare centres
- Corporate offices
- Industrial facilities
- Shared access environments
- Warehouse facilities
- Multi-door access systems
- Enterprise security installations
Compatible Systems
- Electric strikes
- Magnetic locks
- Wiegand readers
- Keypads
- RFID readers
- Fingerprint readers
- Automatic doors
- Gate access systems
- Rosslare AxTraxNG™ software
Professional Installation Recommended
Professional installation of the Rosslare AC-425IP 4 Door Controller is recommended to ensure correct network configuration, power management, relay integration, reader compatibility and long-term system reliability.
