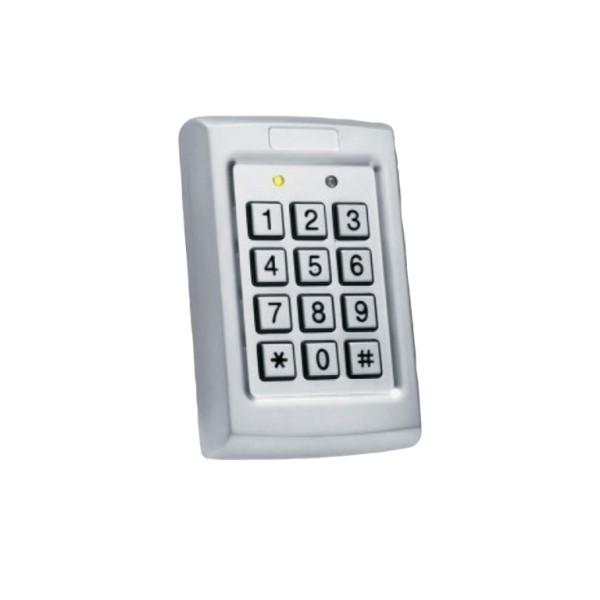

The Rosslare AC-Q41H Anti-Vandal Keypad is a professional standalone access control keypad designed for commercial, strata, childcare and industrial applications requiring reliable PIN-based door access.
Featuring a rugged vandal-resistant metal body, blue backlit keys, advanced programming functionality and weather-resistant construction, the keypad is suitable for demanding indoor and outdoor installations.
Supporting up to 500 PIN users, the Rosslare AC-Q41H provides secure standalone access control without requiring a full networked access control system.
Its slimline design, removable terminal blocks, built-in heater, multiple security modes and programmable relay output make it ideal for commercial doors, gates and high-traffic access points where durability and reliability are essential.
Key Features
Anti-Vandal Metal Construction
Heavy-duty vandal-resistant metal housing designed for high-traffic and outdoor installations.
Standalone Access Control
Operates independently without requiring a separate access control panel or network connection.
Up to 500 PIN Users
Supports up to 500 authorised PIN users for small and medium access control applications.
Blue Backlit Metal Keypad
Illuminated metal keys provide clear and convenient operation in low-light environments.
Advanced PIN Security
Supports programmable PIN codes and timed lockout protection following repeated incorrect access attempts.
Multiple Operating Modes
- Normal mode
- Secure mode
- Bypass mode
Optical Tamper Detection
Integrated tamper protection helps detect unauthorised interference with the keypad.
Built-In Heater
An automatic internal heater supports reliable operation in low-temperature environments.
Flexible Relay Integration
Programmable relay control allows integration with electric strikes, magnetic locks, automatic gates and standalone door access systems.
Weather-Resistant Design
IP65-rated construction makes the keypad suitable for protected indoor and outdoor installations.
Technical Specifications
| Model | Rosslare AC-Q41H |
|---|---|
| Product Type | Standalone anti-vandal access control keypad |
| Housing Material | Vandal-resistant metal construction |
| Keypad | Blue backlit metal keys |
| User Capacity | Up to 500 PIN users |
| PIN Length | 4–8 digits |
| Operating Voltage | 12–24V AC/DC |
| Relay Output | 2A Form C relay |
| Input | Request-to-Exit input supported |
| Tamper Protection | Optical tamper detection |
| Operating Temperature | -20°C to +60°C |
| Weather Rating | IP65 |
| Mounting Type | Surface mount |
| Dimensions | 120 mm × 76 mm × 27 mm |
Ideal Applications
- Commercial buildings
- Strata properties
- Childcare centres
- Office entry systems
- Automatic gates
- Industrial facilities
- Shared facilities
- Storage areas
- Outdoor access control systems
- High-vandal-risk environments
Compatible Systems
- Electric strikes
- Magnetic locks
- Automatic gates
- Standalone access systems
- Commercial door access systems
- Gate controllers
- Request-to-Exit devices
Professional Installation Recommended
Professional installation and configuration of the Rosslare AC-Q41H Anti-Vandal Keypad are recommended to ensure correct power supply integration, relay configuration, lock compatibility and reliable long-term operation.
